Twin Spiral Systems

Details

Category: Elevators and Conveyors

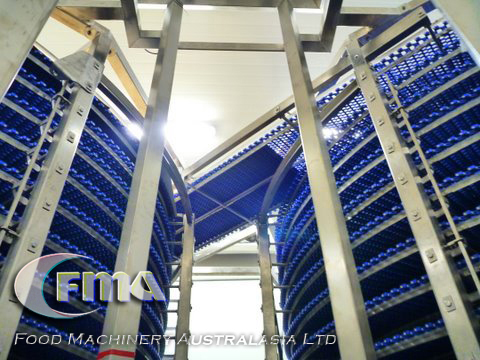

The FMA range of Twin drum spiral systems, accumulator and coolers are of all 304 stainless steel construction with hybrid plastic belt, sprockets and pre tensioning section for the belt take up. The spiral conveyor can also be optioned with a 304 Stainless steel belt if required. The website photo is of a twin drum spiral cooler configuration; this has a retention time of up to 4 hours approx, , subject to product placement and unit size. The first spiral on the in feed side would take product up approx 12 tiers (levels). The product is then transferred across the transfer section of belt to the second spiral which then returns the product back down to floor level and out onto the discharge belt section. The belt is continuous and of a one piece configuration with an inbuilt belt tensioning tower and assembly.
